12V 24V micro gear motor

As one of the planetary motors manufacturers, suppliers, and exporters of mechanical products, We offer planetary motors and many other products.

Please get in touch with us for details.

Mail:[email protected]

Planetary Motors

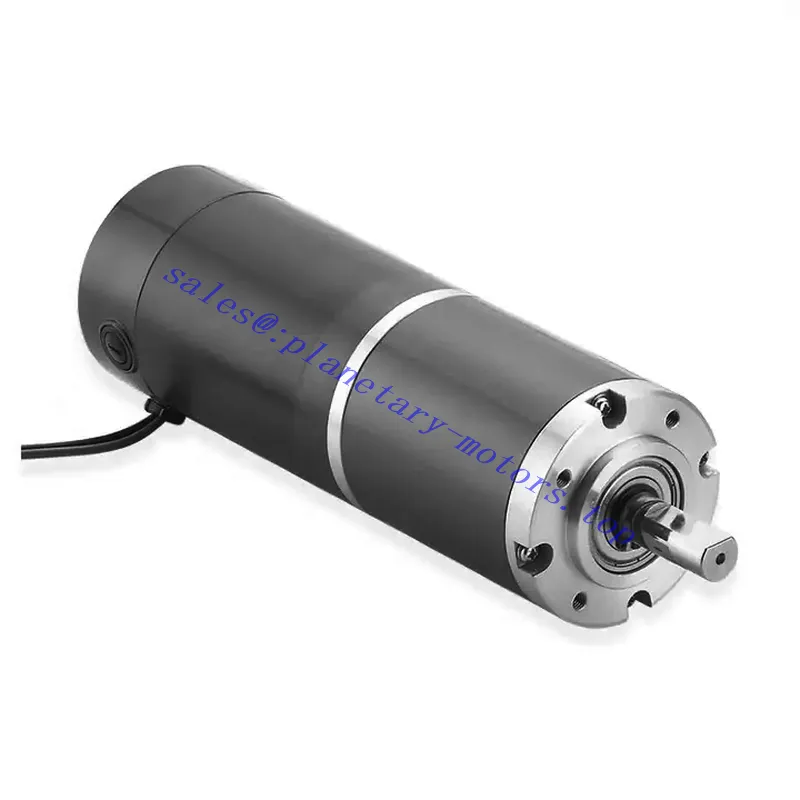

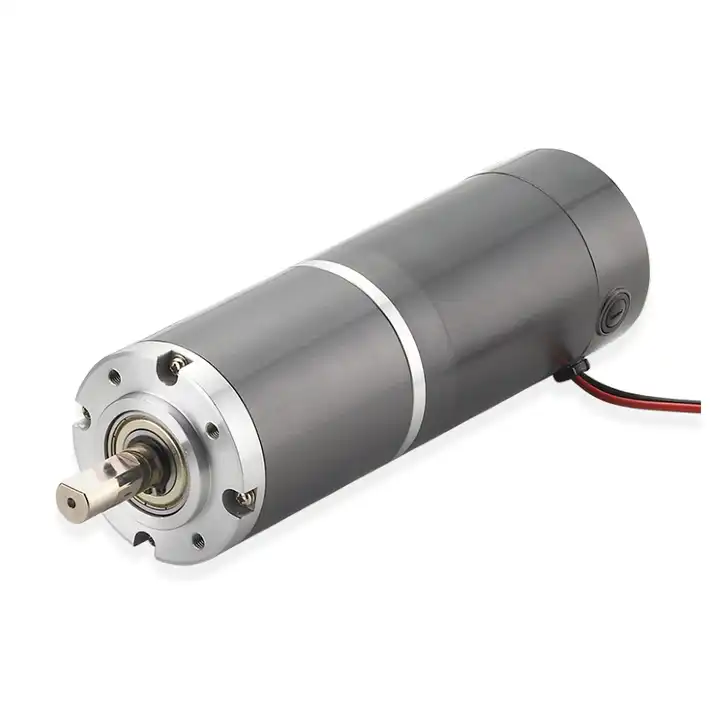

ep-planetary-motors-3

Planetary motors are a type of gear motor that are widely used in various industrial and commercial applications. They are known for their high torque output, compact size, and efficient operation, making them an ideal choice for applications where space is limited but high power is required. In this article, we will provide an in-depth introduction to planetary motors, including their design, operation, and applications.

Planetary motors are so named because of their unique planetary gear design. The gear set consists of a central sun gear, several planet gears that rotate around the sun gear, and an outer ring gear that meshes with the planet gears. This design allows the planet gears to distribute the load evenly across the gear set, resulting in high torque output and efficient operation.

Planetary motors are available in a range of sizes and configurations, including inline and right-angle models. They can be powered by AC or DC power sources, and can be customized to meet specific requirements, such as speed, torque, and voltage.

Planetary Motors Specifications

Efficiency
50%~80%
Diameter of Gear Motor
80mm
No Load Current
≤ 1,100 mA
Load Current
≤ 5,300 mA
Rated Torque
7.6 ~ 125 kgf-cm
Instant Torque of Gearbox
45 ~ 375 kgf-cm
Gear Motor Length
190.3 ~ 239.8 mm
Gear Ratio
1/4 ~ 1/647
Gear Type (First Stage from motor)
Metal or Plastic
Shaft Material
AISI 1144, SCM440
Product name
80mm Planetary Motor
*Voltage(V)
12V/24V
*Output Power
43.60 ~ 59.00 W

Planetary Motors Benefits

High torque: Planetary motors can generate high torque, making them ideal for applications that require a lot of force. For example, they are often used in industrial machinery, robotics, and lifting equipment.

High efficiency: Planetary motors are very efficient, meaning that they convert most of the input power into output power. This can save energy and money in the long run.

Compact size: Planetary motors are relatively compact, making them well-suited for applications where space is limited. For example, they are often used in medical devices, aerospace equipment, and consumer electronics.

Low noise: Planetary motors are relatively quiet, making them a good choice for applications where noise is a concern. For example, they are often used in office equipment, vending machines, and other machines that are used in public areas.

Long life: Planetary motors are typically very durable and can last for many years with proper maintenance. This makes them a good value for applications where long-term reliability is important.

Uses Of Planetary Motors

Industrial machinery: Planetary motors are often used in industrial machinery, such as conveyor belts, robots, and machine tools. They provide the high torque and efficiency needed for these applications.

Robotics: Planetary motors are also well-suited for robotics applications. They are compact and lightweight, making them ideal for robots that need to be agile and maneuverable.

Lifting equipment: Planetary motors are often used in lifting equipment, such as hoists and cranes. They provide the high torque needed to lift heavy loads.

Medical devices: Planetary motors are also used in medical devices, such as surgical robots and imaging equipment. They are compact and quiet, making them ideal for use in hospitals and other healthcare settings.

Consumer electronics: Planetary motors are also used in consumer electronics, such as cameras, printers, and DVD players. They are compact and efficient, making them ideal for use in these devices.

Maintenance tips for Planetary Motors

Check the gear oil levels regularly. The gear oil in a planetary motor helps to lubricate the gears and keep them cool. If the oil levels are low, the gears will not be properly lubricated and they may wear out prematurely.

Change the gear oil regularly. The frequency with which you need to change the gear oil will depend on the application. However, it is generally recommended to change the gear oil every 12,000 to 24,000 hours of operation.

Inspect the gears for wear and tear. The gears in a planetary motor are subject to wear and tear. If you notice any signs of wear, such as chipped or missing teeth, the gears should be replaced.

Clean the motor regularly. The exterior of a planetary motor can become dirty and dusty over time. This dirt and dust can interfere with the cooling of the motor and can also lead to premature wear. The motor should be cleaned regularly with a mild detergent and water.

Lubricate the bearings regularly. The bearings in a planetary motor help to support the gears and keep them rotating smoothly. If the bearings are not properly lubricated, they may wear out prematurely. The bearings should be lubricated with a light oil or grease on a regular basis.

We are one of the best planetary motors manufacturers. We have exported our products to clients around the world and earned a good reputation because of our superior product quality and after-sales service. We warmly welcome customers both at home and abroad to contact us to negotiate business, exchange information, and cooperate with us!
